ABOUT THE COMPANY:
iGene Labserve Pvt. Ltd. is gaining recognition by offering resilient, innovative solutions in laboratory instrumentation across healthcare, genomics, drug discovery, biopharma, and food & beverage sectors. We strive to enhance lab efficacy and reduce challenges through advanced technologies and a diverse product portfolio tailored to our customers’ needs.
DESCRIPTION:

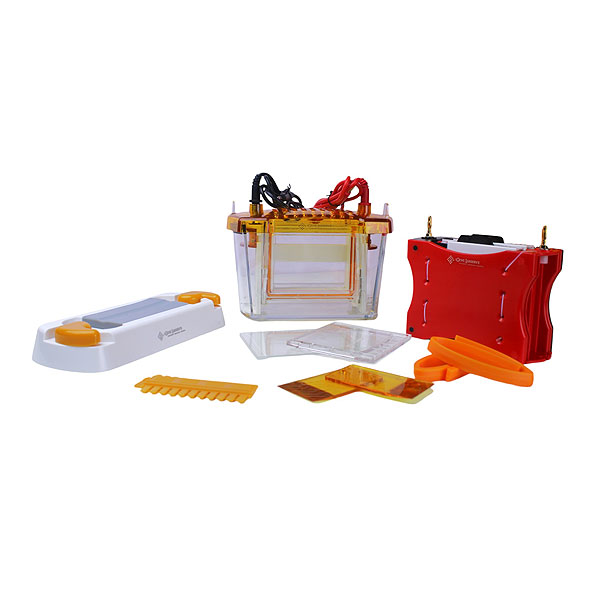

Vertical gel electrophoresis is a widely used technique in molecular biology and biochemistry for separating proteins and nucleic acids based on their size and charge. The IG-VDN series vertical electrophoresis units are designed as single-molded systems, eliminating the need for fabrication or adhesive joints, ensuring a leak-proof experience. These units feature a uniquely designed caster assembly that is simple to operate and guarantees a secure, leak-free performance.
KEY FEATURES:
- In-Situ Gel Making Mode: The gel making and running process is completed without dismantling the electrophoresis glass.
- Non-Spring Latch Locking Mechanism: The special design of the gel-making base, locked by a non-spring latch, prevents leakage caused by spring pressure failure or aging.
- Unique Card Plate Design: The card plate with a whole gland allows the glass plate to be sealed using extrusion rubber strips, avoiding leakage and ensuring proper positioning.
- Versatile Glass Plate and Gel Comb: Different gel comb thicknesses (1.5 mm, 1.0 mm) (0.75 optional) allow adaptation to various sample loading needs.
- Compatibility with Transfer Electrophoresis: Can be paired with the IG-04FD and IG-044FD western blot assembly.
- Durable Material: Made from high-quality transparent polycarbonate for durability and easy observation.

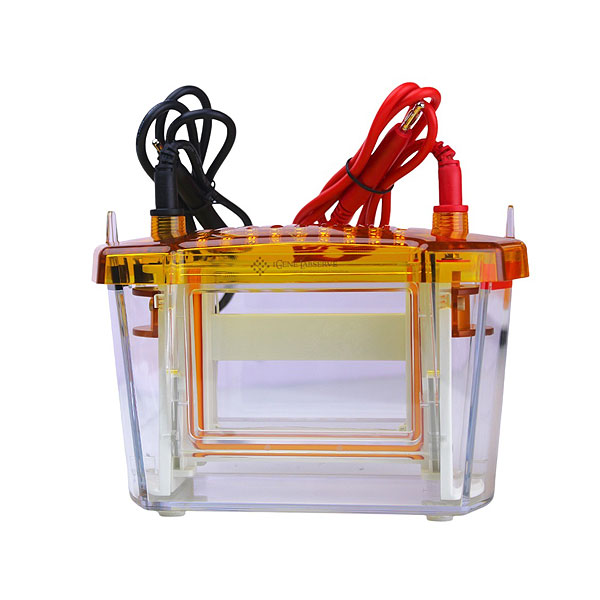

- Molded Buffer Tank with Platinum Electrodes: Pure platinum electrodes ensure consistent conductivity and results.
- Safety Features: The unit is designed to prevent buffer and gel leakage and has removable electrodes for easy maintenance. The system automatically powers off when the lid is removed for safe operation.
- Wide Application: Suitable for SDS-PAGE, native PAGE electrophoresis, and two-dimensional gel electrophoresis.
- Soft Seals and Pressure Bars: Ultra-soft silicone seals and pressure bars around the glass plates guarantee a leakproof gel casting experience.
- Interchangeable Modules: Designed for PAGE and electroblotting.
- Pre-cast gel: Suitable for use with pre-cast gel.
VERTICAL ELECTROPHORESIS:
| SPECIFICATIONS | PARAMETERS | |
|---|---|---|
| Model No. | IG-24VDN VERTICAL ELECTROPHORESIS | IG-34VDN VERTICAL ELECTROPHORESIS |
| Dimension(LxWxH)(mm) | 185*108*125 | 153*183*159 |
| Gel size (mm) | 83*73 | 83*73 |
| Comb Specifications | 1.0mm :11 teeth 1.5mm: 11 teeth |
1.0mm: 11 teeth/ 15teeth 1.5mm: 11 teeth/ 15teeth 0.75mm: 11 teeth/15teeth |
| Maximum Buffer Capacity | 0.5L | 1.6 L |
| Number of Gels | 1-2 | 1-4 |

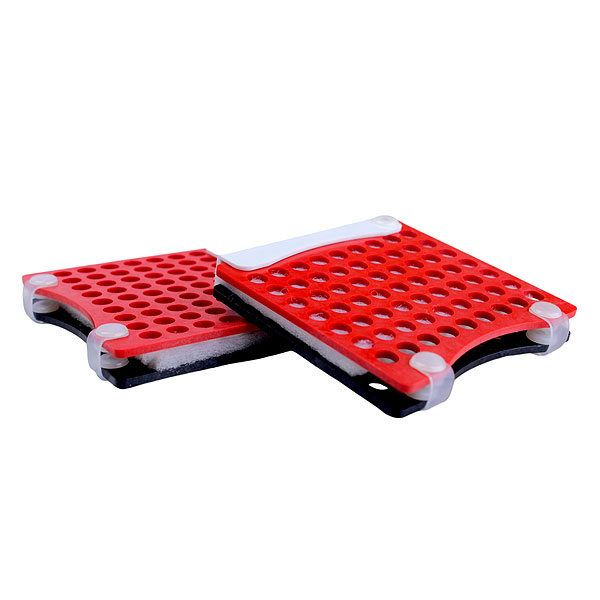

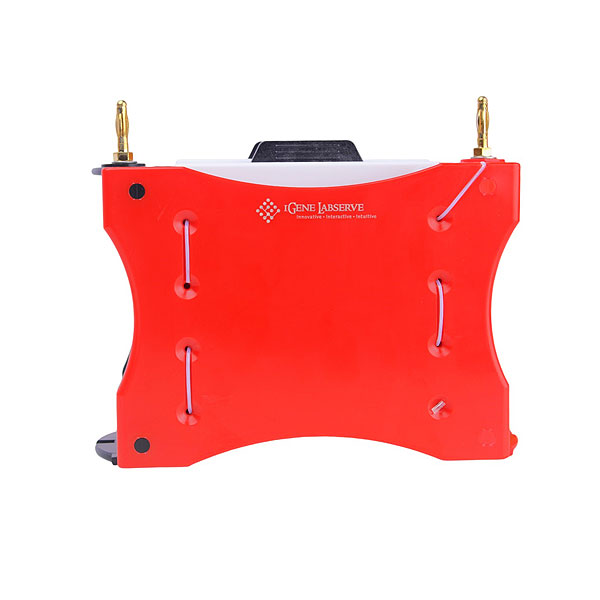

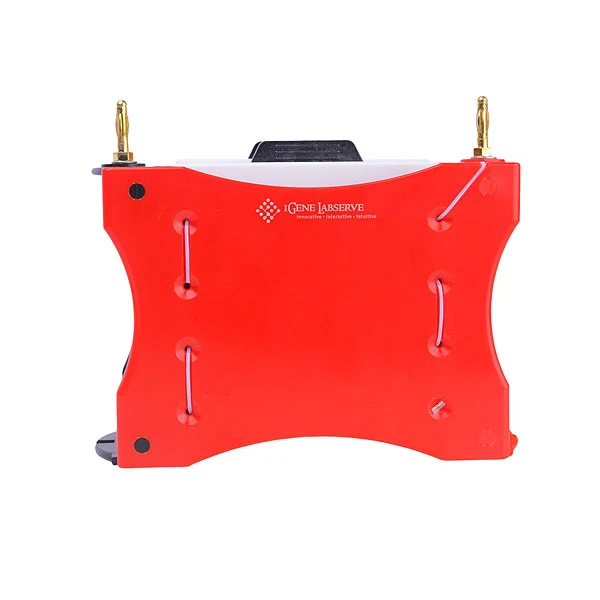

WESTERN BLOT ASSEMBLY:
| SPECIFICATIONS | PARAMETERS | |
|---|---|---|
| Model No. | IG-04FD WESTERN BLOT ASSEMBLY | IG-044FD WESTERN BLOT ASSEMBLY |
| Number of Gels | 1-2 | 1-4 |
| Dimension (LxWxH)(mm) | 185*108*125 | 153*183*159 |
| Transfer size (mm) | 70*90 | 70*90mm |
| Buffer volume | 0.5L | 1.6L |
POWER PACK IG-4006:
The Power Pack IG-4006 is an advanced rectifier device designed to convert alternating current (AC) to direct current (DC) for high-precision applications. Its versatile design supports constant voltage and current control, making it an ideal solution for a wide range of laboratory experiments such as nucleic acid gel electrophoresis, protein gel electrophoresis, Western blotting, and protein transfer. This device is widely used in biological and medical fields for precise, stable, and reliable performance.
TECHNICAL SPECIFICATIONS:
| Input Power Supply: | 180V-240V |
|---|---|
| AC Frequency: | 50Hz/60Hz |
| Ambient Temperature: | 4°C to 40°C |
| Environmental Humidity: | 10%-70% |
| OUTPUT RANGE: | |
| Voltage: | 6V-600V (accuracy 1V) |
| CONTROL ACCURACY: | |
| Voltage Setting: | <100V voltage stability accuracy: <1V >100V voltage stability accuracy: <±1% |
| CURRENT SETTING: | |
| CURRENT SETTING: | <100mA current stability accuracy: <1mA >100mA current stability accuracy: <±1% |
| Rated Output Power: | 300W |
| Dimensions: | 265mm (L) x 215mm (W) x 120mm (H) |
| Output Quantity: | Positive, negative A/B four groups. |
| WORKING MODES: | |
| Constant Voltage (U Mode): | Default mode, ensures constant voltage during operation. |
| Constant Current (I Mode): | Provides stable current control for sensitive applications. |
| Gradient Voltage/Current (Gradient U/I Mode): | Allows setting of three different voltage or current segments for more complex protocols. |
