FEATURES & SPECIFICATIONS
DESCRIPTION:

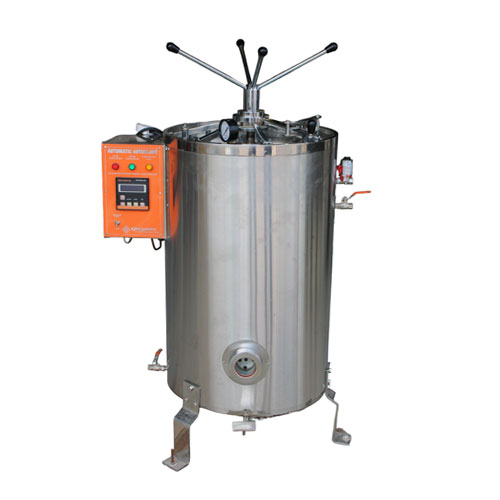

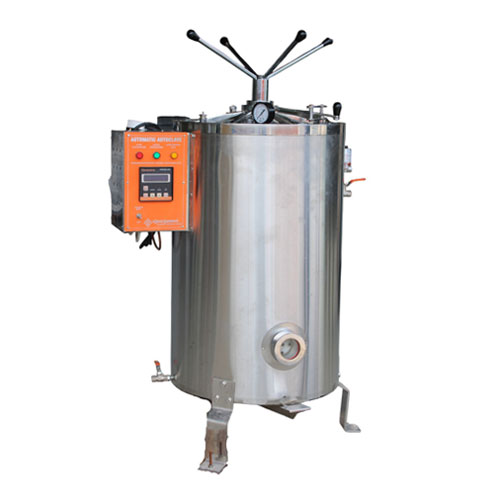

Vertical autoclaves are also known as top-loading sterilizers that come cylindrical. These are widely used in hospitals, Operation Théâtre (OT), and microbiology laboratories for the sterilization of various media and cultures. The working of a vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at the top of the lid, and a foot lever (pedal) is attached at the bottom. The user has to press the pedal and lift the lid.
We make various types of vertical autoclave machines for per intended use. Economy models come with a powder-coated MS exterior and stainless-steel interior. Our Deluxe models are double-walled vertical autoclaves and made with inner and exterior stainless steel; while the Triple Walled models have another chamber and all three walls are made of thick gauge of stainless-steel sheets. We make every vertical steam sterilizer following ASME guidelines to ensure that they are safe for users and samples.
FEATURES:
- Stainless steel interior
- Digital temperature indicator Digital Temperature Controller
- ISI marked flange/immersion heating elements
- Up to 121°C temperature range
- Silicone rubber gasket
- Automatic pressure control switch
- Stainless steel basket
- Reliable steam pressure gauges
- Double or triple-walled construction
- Pedal lid opening
- Water level indicator
- Water inlet & outlet valves
SPECIFICATIONS:
| Construction | Economy Model | Double Walled Model | Triple Walled Model |
|---|---|---|---|
| MOC Exterior | Painted MS sheet | SS 304 (mirror finish) | SS 304 mirror finish) |
| No. of walls | Two | Two | Three |
| Lid | Polished MS | SS 304 | SS 304 |
| Interior | SS 304 with silicon gasket | ||
| Working Pressure | 15 to 30 psi | ||
| Working Temp. | 121°C to 134°C | ||
| Controller | PID-based controller, Auto set to 15 psi & 121°C | ||
| Pressure display | Analogue dial gauge | ||
| Timer | Mechanical timer | ||
| Programmable | Programmable automatic start timer | ||
| Hydraulic tested | Hydraulically Tested up to 30 psi (ASME Guideline) | ||
| Lid lock | Single-hand easy lock system for operating and closing. | ||
| Basket | Stainless steel basket | Stainless steel basket | Not Required |
| Power supply | 220 Volts 50Hz | ||
| Standard Fittings | Low water indicator; Automatic pressure switch; Pedal lifting device Steam release valve; Water outlet valve; Spring loaded safety valve Power cable with three pin tops | ||
| Optional Accessories | Fully stainless-steel construction (GMP) Up to 134°C temperature range PID temperature controller cum timer with alarm Thermal Printer Lower water cut-off |
||
STANDARD SIZES / DIMENSIONS:
| Ordering Information | Dia. x Height | Volume | Watt |
|---|---|---|---|
| IG-23VA | 250 mm x 450 mm | 23 liters | 1 kW |
| IG-35VA | 300 mm x 500 mm | 35 liters | 2 KW |
| IG-50VA | 350 mm x 550 mm | 50 liters | 3 kW |
| IG-75VA | 400 mm x 600 mm | 75 liters | 4 kW |
| IG-95VA | 450 mm x 600 mm | 95 liters | 4 kW |
| IG-120VA | 450 mm x 750 mm | 120 liters | 5 kW |
| IG-175VA | 550 mm x 750 mm | 175 liters | 6 kW |
NOTE: Model type of Economy / Double Wall / Triple Wall before ordering. Customization with the mentioned optional accessory is also possible. Model type of Economy / Double Wall / Triple Wall before ordering. Customization with the mentioned optional accessory is also possible.
