DESCRIPTION:

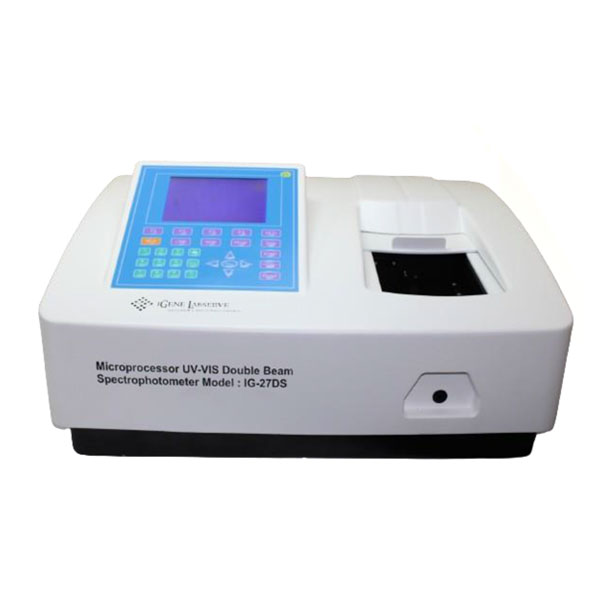

The IG-27DS spectrophotometer measures the amount of light that a sample absorbs by passing a light beam through it. These instruments are used to measure the concentration of any unknown solution and monitor absorption accuracy throughout production.
KEY FEATURES:
- Wide Wavelength range, satisfying requirements of various fields.
- Fully automated design, realizing the simplest measurement & as per the requirement of pharmacopoeia
- Upgradable to 8 samples to be measured at one time.
- Automatic change-over between T lamp & D2 lamp.
- Optimized optics and large-scale integrated circuits design, light source and receiver from world famous measurement methods all add up to high performance and reliability.
- Rich measurement methods: wavelength scan, time scan multi- wavelength determination, multi-order derivative determination, double-wavelength methods triple-wavelength methods etc., meet different measurement requirements.
- Data Output can be obtained via a printer port. Parameters and data can be saved for the user’s convenience.
- PC controller measurement can be achieved for more accurate and flexible requirements.
- Glass Cell: 4 Nos
- Quartz Cell: 2 Nos
- Software, Instrument Cover, USB Cable, Software Manual, Instrument Manual
TECHNICAL SPECIFICATION:
| MODEL | IG-27DS |
|---|---|
| Optical System | Double Beam, Grating 1200 lines/mm |
| Wavelength Range | 190nm – 1100nm |
| Spectral bandwidth | Fixed 1.0nm |
| Wavelength Accuracy | ± 0.3 nm (656.1 nm D2), ± 0.5 nm (full wavelength Range) |
| Wavelength Repeatability | 0.1nm |
| Wavelength Display Setting | 0.1 nm increment |
| Photometric Accuracy | ±0.3% T(0~100% T) |
| Photometric Repeatability | 0.001 Abs(0~0.5 Abs) |
| Wavelength Slew rate | 15000 nm/min |
| Photometric Range | 3A~3A |
| Transmittance | 0-100% T |
| Stray Light | <=0.02%T(220 nm,natural air level (nal) ,340 nm NaMO2 Sodium Metal Oxide) |
| Stability | ±0.0004 A/H@500 nm |
| Baseline Flatness | ±0.001A |
| Scanning Speed | Fast, Mid, Slow |
| Wavelength Setting | AUTO |
| Keyboard | Membrane Keypad |
| Light Source | Deuterium & Tungsten Lamp |
| Wavelength Resolution | 0.1nm |
| Photometric Mode | Absorbance , Transmittance and Concentration (A, T and C) |
| Detector | Imported Silicon Photodiode |
| Interface | USB Port and parallel port (Printer) |
| Power | AC 220V/50Hz or AC 110V/60Hz |
| Dimension | 590x460x220mm |
| Weight | 25kg |
| Drift | ≤+/0.0004A bs/h |
| Cell Holder | 2 Cell Holder |
