FEATURES & SPECIFICATIONS
DESCRIPTION

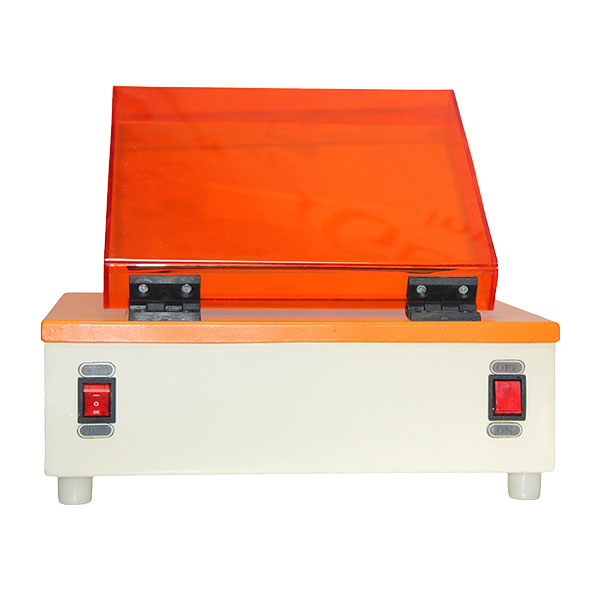

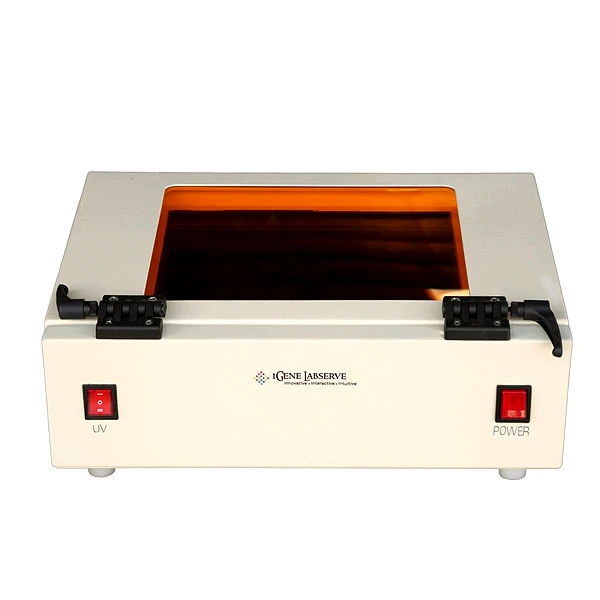

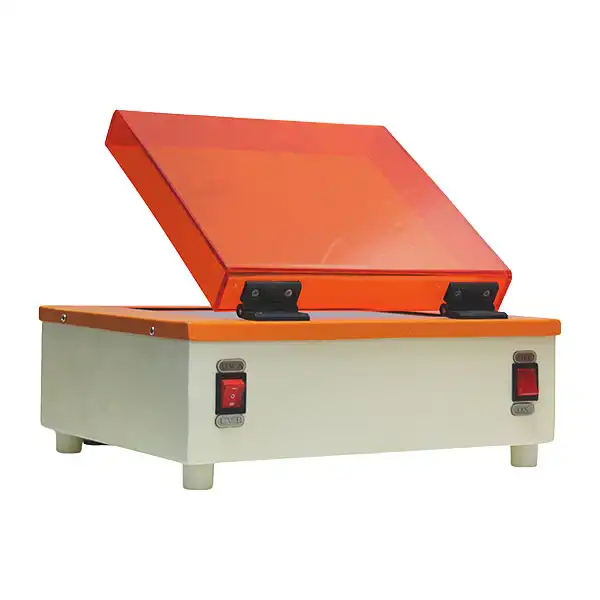

A transilluminator uses an intense source of UV radiation to make visible the fluorescent marker used in electrophoresis gels. The gel is placed on the transilluminator window and is illuminated from below.
FEATURES
- Model No.: IG- UV Series
- Wavelength: 302 & 365nm (254nm optional)
- Viewing area: 21X26CM
- UV Tube: 8×8 watts
- UV Tube Housing: Anti Corrosion treated with Powder coated Mild Steel
- Mild Steel UV Safety Shield: Amber lid for excellent clarity
- Input: 220V AC,50-60Hz
SPECIFICATION
| Model No. | IG-UVD | IG-UVA |
| wavelength | 302 & 365nm | 365nm |
| Viewing area | 21×26 cm | |
| UV tube | 8×8 watts | |
| Two-way switch | Switches between UVA & UVB (302&365nm) | Switches between high & low intensity |
| Input power | 220 V, 50-60Hz | |
