FEATURES & SPECIFICATIONS:
DESCRIPTION:

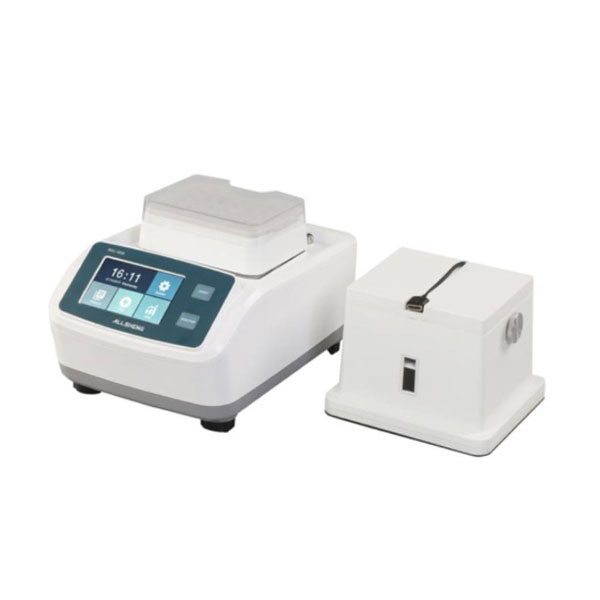

IG-C30T Thermo shaker incubator is a comprehensive upgrade to the existing instruments. Different from the common setting of instrument parameters through poly domes, it uses a 4.3-inch color LCD screen combined with a graphical operation interface to give users a better experience. Various program editing options, such as shaking start time, cycle steps, heating rate, etc., help to find the best experimental conditions.
FEATURES:
- Microprocessor control, good temperature control linearity, accurate shaking speed, small fluctuation
- DC brushless motor drive, long service life, maintenance-free
- Excellent performance, precise temperature control
- Full power heating can be selected, and the highest 3℃/min heating method can also be selected to prevent the experiment from failing due to uneven temperature changes
- Optional thermo lid accessories, effectively improve the temperature uniformity in the test tube
- Optional full power cooling, or up to 1℃/min cooling
- Multiple block choices, faster block loading and unloading
- Various blocks are available, and can be customized
- New designed method of block loading and unloading, blocks can be replaced without tools
- Open design, more comprehensive program setting
- Various heating methods, you can choose the appropriate method according to the experimental needs
- The shaking method can be set according to requirements, and both forward and reverse rotation can be set
- Program continuous operation function, multiple programs are connected to each other, no need to set repeatedly
- 4.3-inch color LCD screen display, intuitive and easy to operate
- Power failure self-recovery function, the device can automatically resume
- Operation according to the original set procedure after power failure recovery
- Various standard sample blocks are available, and the blocks can be automatically identified
- The instrument will be equipped with a mobile phone APP for real-time monitoring of instrument status
Model | IG-30T | IG-C30T |
---|---|---|
Display | 4.3 inch touch screen (capacitive type) | 4.3 inch touch screen (capacitive type) |
Temperature control range | RT +5℃~105℃ | 0℃~105℃ |
Temperature uniformity | ≤0.5℃ | ≤0.5℃ |
Timer range | 1min~99h59min | 1min~99h59min |
Temperature control accuracy | ±0.5℃(@30-50℃) | ±0.5℃(@30-50℃) |
Display accuracy | ±0.1℃ | ±0.1℃ |
Shaking speed | 200-3000rpm | 200~3000rpm |
Heating time (25-100℃) | ≤15min (RT 20℃~30℃) | ≤15min (RT 20℃~30℃) |
Refrigeration time(detected at 25℃ ambient temperature) | — | ≤20min (Ambient temperature ≤20℃: 20℃~0℃) ≤20min(Ambient temperature ≤25℃:RT~4°C) ≤20min (Ambient temperature ≤30℃:RT~10℃ |
Heating rate gear | Max; 3℃/min; 2°C/min;1℃/min; 0.1℃/min | Max; 3℃/min; 2°C/min;1℃/min; 0.1℃/min |
Cooling rate gear | — | Max;1℃/min;0.5℃/min;0.1℃/min |
Program number | 50 | 50 |
External port | USB: program related, printer; 7Pin socket: thermo lid | USB: program related, printer; 7Pin socket: thermo lid |
Shaking amplitude | 3mm | 3mm |
Dimension(mm) | 318x154x220 | 318×154×220 |
Blocks | 0.5ml tubes, 2ml tubes & 96 well PCR Plate Optional: 0.2 1.5, 5, 15, 50 ml tubes, 384 well plates |
|
Weight | 10kg | 10kg |
