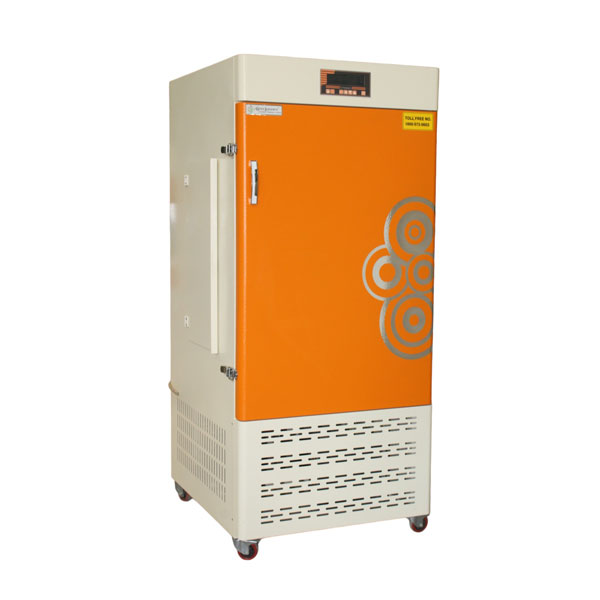

Seed Germinator Chamber

Download Brochure

Seed Germinator is a machine used for germination of different types of seeds in laboratories. These machines are specifically designed growth chambers that create artificial environment using temperature, humidity and light responsible for germination of seeds.

pdf

Category: Tag:

FEATURES & SPECIFICATIONS

DESCRIPTION:
Seed Germinator is a machine used for germination of different types of seeds in laboratories. These machines are specifically designed growth chambers that create artificial environment using temperature, humidity and light responsible for germination of seeds. These chambers play important role in crop productions. If needed, we can also customize or further modify these seed germinators with number of accessories including PLC with HMI interface and data logger with USB interface etc.

Chambers: Our seed germinators are constructed in single chamber and dual chamber designs. Dual chamber machine has two adjacent chambers and each chamber has individual temperature and humidity control system. Construction: Inner chamber of each machine is made of thick sheet of stainless steel 304; while the exterior is made of GI sheet which is powder coated for corrosion resistance surface. Each jointed is nicely moulded and arc welded.

Control system: When using seed germinator accuracy is a prime requirement; therefore, we use powerful PID based temperature and humidity control system supported by high accuracy PT100 RTD sensor and capacitive sensor. In addition, we also use PLC based HMI controller which features color touch screen, data monitoring and recording and data transfer into computer on user demand. It can be further customized to any level of comfort.

Cooling System: The cooling system in our seed germinator machines are done using branded CFC free and hermetically sealed compressor with R134A refrigerant. It is long life compressor and plays important role in maintaining low temperature.

Humidification: The humidification system consists of a stainless-steel tank and an ISI mark immersion heater. It also features automatic water filling device, when water goes below the low level, this device opens the valve for water re-filling.

Heating: For heating system, we use tubular air or wire bead heater that are non-corrosive and feature fast heat
up.
Air circulation: In order to achieve uniform temperature and humidity level in every corner of the chamber forced air circulation is needed and in our seed germinators we use high quality motorized blower assembly for this purpose. This assembly not only distributes temperature and humidity uniformly all over the chamber but also offers quiet and vibration free operation for long years.

Illumination: Good seed growth mostly depends upon sufficient illumination inside the chamber; therefore, we equip our seed germinator machines with high LUX fluorescent LED lights that are controlled through microprocessor controlled cyclic timer. This timer controls the light mode for a week 24 hours a day.

SPECIFICATIONS:

Temperature range 5°C to 60°C
Temperature controller Digital PID controller
Temperature accuracy ±1%
Temperature sensor PT-100
Humidity range 50% to 90% RH
Humidity controller Digital PID controller
Humidity accuracy ±3%
Light 150-170 micromole/m2/sec
Light timer 24×7 weekly digital timer
Construction Double walled
Exterior Mild steel powder coated
Interior Stainless steel 304
Outer door Single or double solid doors with lock & key

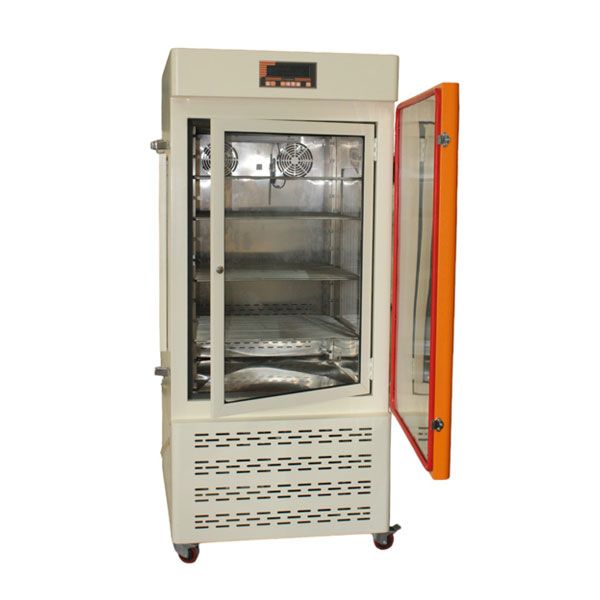

Inner door Glass door to view samples
Shelves 3 to 12 (Height adjustable)
Safety Audio / visual alarm for temperature deviation
Optional Exterior made of stainless steel 304 / 316
PLC with HMI interface
Data logger with USB interface
Password protection for controller
Caster wheels
Power supply 220 Volts / 50 Hz

STANDARD SIZE:

Model Dimensions (mm) Volume (Litres) Volume (Cu. Ft.)
IG-SGC171 505 x 415 x 830 171 6
IG-SGC209 600 x 550 x 910 300 10
IG-SGC340 650 x 580 x 900 340 12
IG-SGC400 700 x 640 x 900 400 14
IG-SGC580 775 x 775 x 970 580 20
