iGene Labserve

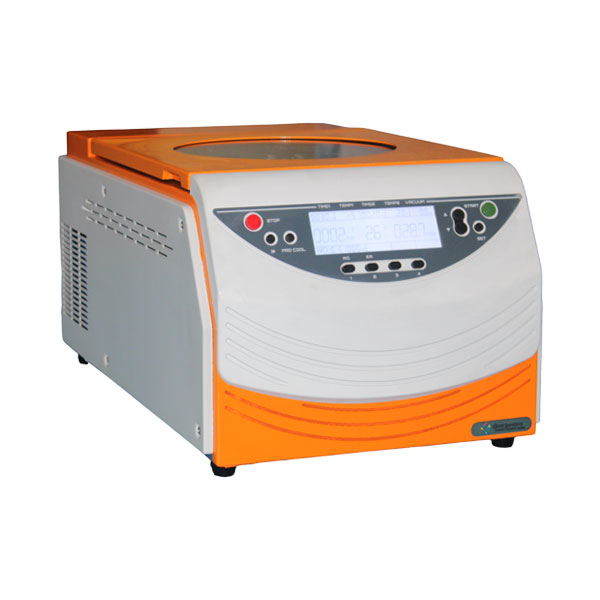

Integrated Centrifugal Concentrator IG3VC-IP

The “IG3VC-IP Integrated Centrifugal Concentrator” is engineered with a customer-centric focus, adhering to ergonomic principles. It features an intuitive user interface and robust construction. The advanced heating technology guarantees rapid and secure concentration of DNA/RNA, oligonucleotides, proteins, and other liquid samples.

FEATURES:

  • Space-Saving Design
    • Features an imported brand corrosion-resistant diaphragm pump with an integrated design.
  • Corrosion-Resistance
    • The centrifuge chamber is treated with a Teflon coating for enhanced corrosion resistance.
    • Teflon material is used for the vacuum pump head.
  • User-Friendly Operation
    • Incorporates a one-button start/stop function to prevent accidental operation.
  • Safety Features
    • Automatically releases vacuum during power outages.
    • Equipped with an exhaust gas evacuation function.
    • Offers 4 sets of program quick keys and 30 user programs.
    • Two-stage temperature control design ensures sample safety.
    • Features a corrosion-resistant vacuum gauge suitable for organic solvents.

SPECIFICATIONS:

Speed Range: 800 to 2000 rpm
Maximum Centrifugal Force. 530 × g
Time Range: 0 to 9999 minutes
Temperature Control Range: RT +5°C to 100°C
Temperature Control Accuracy: ± 1°C
Ultimate Vacuum: Less than 13 mbar
Pumping Speed: 33 L/min
Noise Level: Not exceeding 60 dB(A)
Machine Power: 660 W
Power Supply: AC 220V, 50Hz/60Hz, 10A
Dimensions (L × D × H): 608 × 370 × 299 mm
Weight: 37.9 kg
