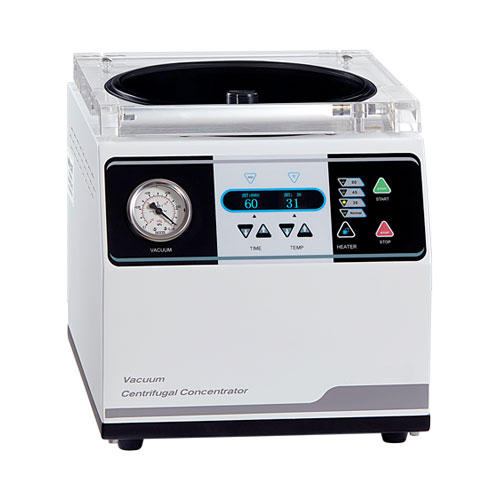

IG-1VC Centrifugal Vacuum Concentrator

The “IG-1VC Centrifugal Concentrator” is engineered with a customer-centric focus, adhering to ergonomic principles. It features an intuitive user interface and robust construction. The advanced heating technology guarantees rapid and secure concentration of DNA/RNA, oligonucleotides, proteins, and other liquid samples.

FEATURES:

  • Space-Saving Design
    • Small volume with large capacity, with a width of only 28cm.
  • Corrosion-Resistance
    • The centrifuge chamber is treated with a Teflon coating for enhanced corrosion resistance.
    • Teflon material is used for the all gas contact parts.
  • User-Friendly Operation
    • Incorporates a one-button start/stop function to prevent accidental operation.
  • Safety Features
    • Exhaust Gas Evacuation: Exhaust gas automatically vented after the operation is completed.
    • Temperature quick settings: Room temperature, 30°C, 45°C, 60°C, ensuring safe and efficient sample concentration

SPECIFICATIONS:

Speed Range: 1800 rpm
Maximum Centrifugal Force. 380 × g
Time Range: 0 to 9999 minutes
Temperature Control Range: RT +5°C to 70°C
Temperature Control Accuracy: ± 1°C

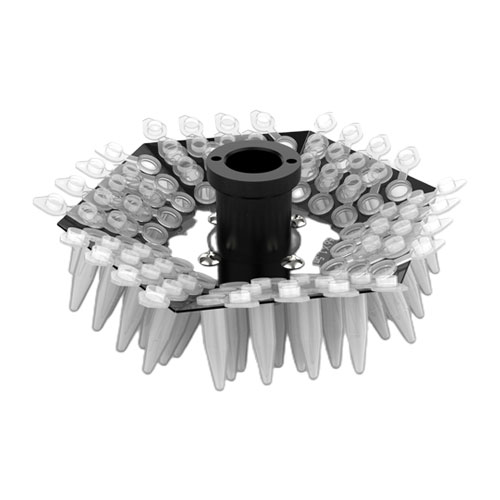

Standard Rotor: 66*1.5ml tubes

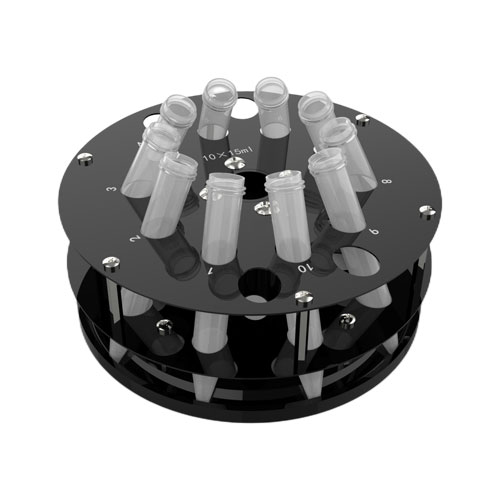

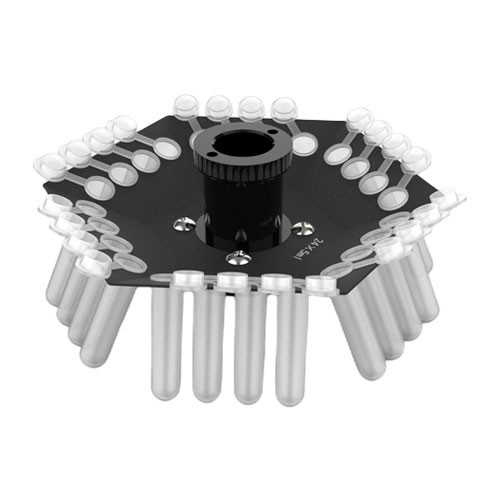

Maximum Capacity: 132*1.5ml | 24 *5ml | 10*15ml
Noise Level: Not exceeding 60 dB(A)
Machine Power: 660 W
Power Supply: AC 220V, 50Hz/60Hz, 10A
Dimensions (L × D × H): 350 × 280 × 290 mm
Weight: 18kg without pump
