FEATURES & SPECIFICATIONS
DESCRIPTION:

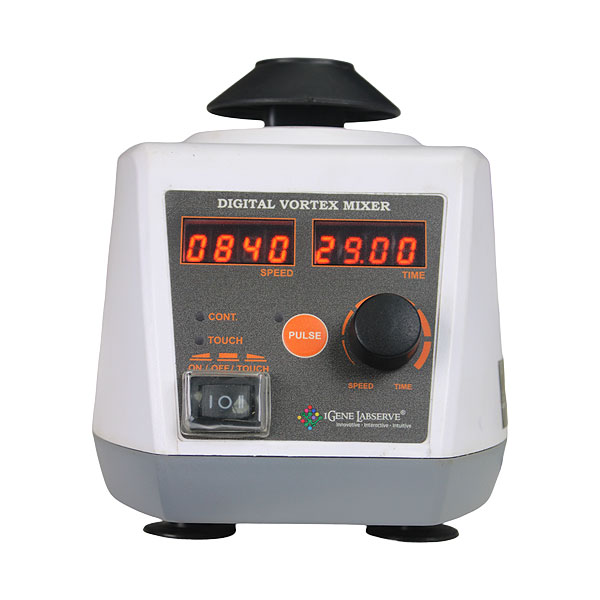

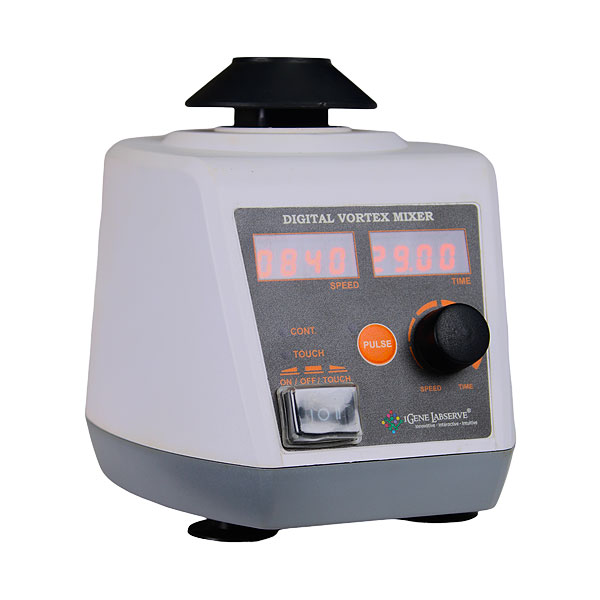

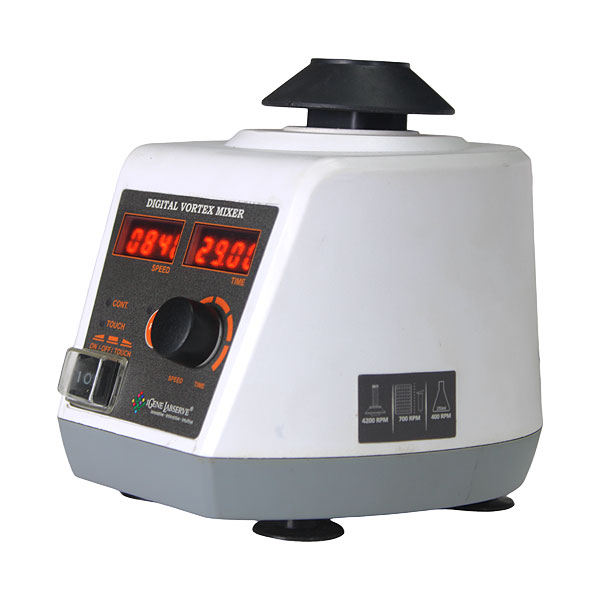

IG-DMS vortex mixer is a laboratory device commonly used for mixing and blending small liquid samples. It is designed to create a swirling or vortex motion within a test tube, microplate, or other containers to thoroughly mix the contents. The mixer consists of a motorized base unit and a cup or attachment that holds the sample.
FEATURES:
- Continuous and touch operation
- Adjustable speed ranges from 300 to 4200 rpm.
- Brushless DC motor for maintenance free long time.
- Digital Dual display for speed and time.
- Orbital diameter of 4 mm.
- Built in counter balance for steady and smooth operation.
- Time setting from 1 to 999 minutes & infinite for continuous operation.
- Programmable PULSE mode
- Broad range of optional accessories
SPECIFICATIONS:
| Model No. | IG-DMS |
|---|---|
| SPEED | 300-4200 RPM |
| INCREMENT/DECREMENT | 10 RPM |
| TIME RANGE | 001-999 MINUTES/∞ |
| PULSE MODE | ADJUSTABLE |
| OPERATION MODE | TOUCH/CONTINUOUS |
| ORBITAL DIAMETER | 4 mm |
| PROTECTION CLASS | IP21 |
| MAX.LOAD CAPACITY | 500 gms. |
| RATED VOLTAGE | 24 V, 1.5 A |
| RATED POWER | 20 W |
| FREQUANCY | 50/60 Hz |
| AMBIENT TEMPERATURE | 5º C to 40º C |
| MAX.HUMIDITY | 80 % RH |
| NET WEIGHT | 2.5 Kg (approx) |
| PRODUCT SIZE | 150x 130 x 115 mm |
STANDARD ACCESSORIES:
- 24 V- 1.5 A power adaptor
- Standard attachment
- Product user manual & warranty card
- Universal attachment
