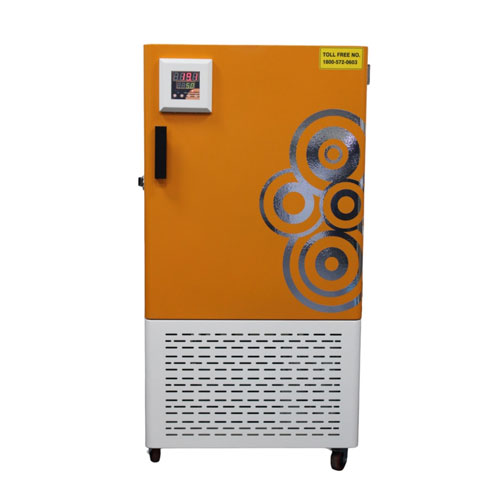

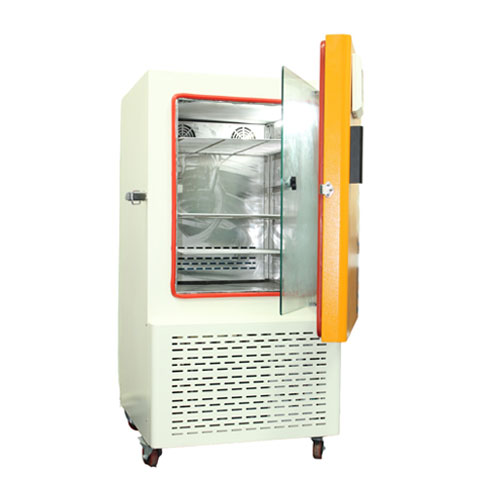

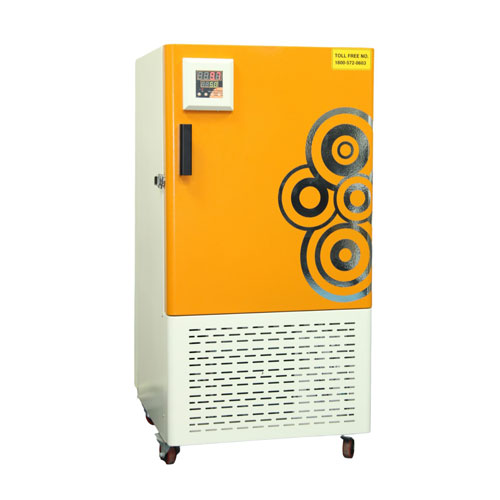

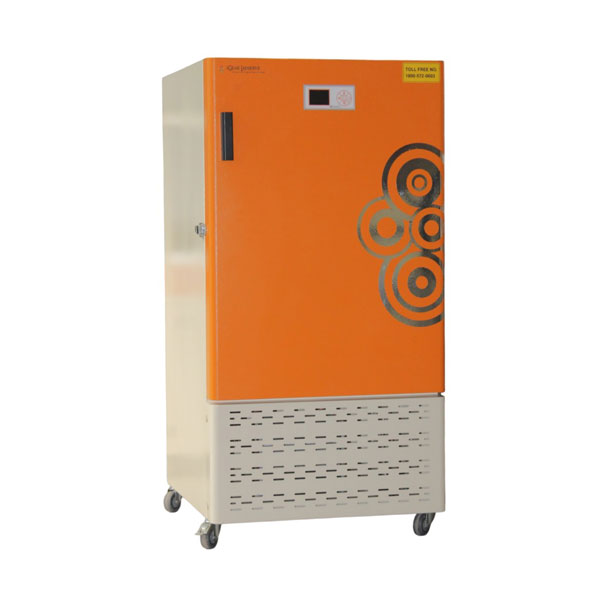

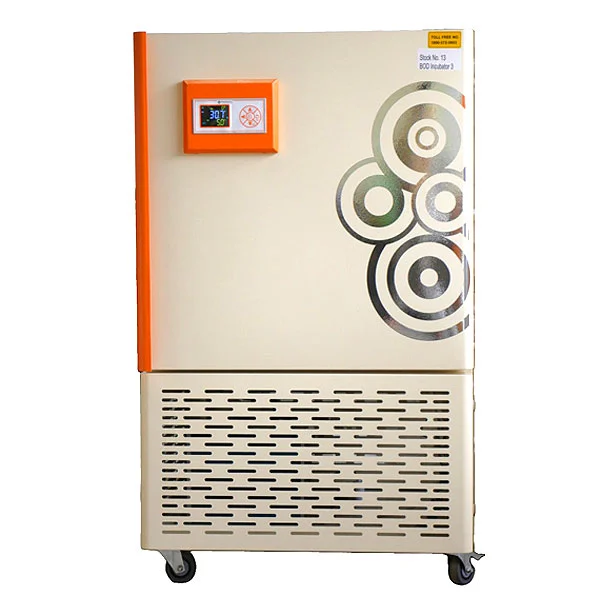

BOD INCUBATOR

Category: Tag:

FEATURES & SPECIFICATIONS

DESCRIPTION & FEATURES
BOD Incubator is used for storage and fungal / bacterial culture growth at 37°C or below. These laboratory incubators are also known as cooling incubators or BOD Incubator because their temperature range remains between (ambient-20°C) to 60°C. These units are fitted with digital temperature controller and air circulation fan, which is responsible for uniform distribution of temperature across the chamber.

Each unit is equipped with digital PID temperature controller for high temperature accuracy and uniformity. This controller displays both set value (SV) and process value (PV). It also has low / high temperature alarm which alerts operator if there is any variation in set temperature. Heat is generated using resistance wire heaters or beaded heaters; motorized blower or axial fan is also fitted to distribute the temperature across the chamber evenly.

iGene Lab serve BOD incubators feature rugged construction. External cabinet is made of thick gauge of GI sheet which is powder coated and painted to enhance its corrosion resistance feature or GMP model with complete stainless steel if required. The inner chamber is made of thick gauge of 304 grade stainless steel sheets. The gap between the inner and external chamber is filled with high density glass wool which minimizes heat loss and keeps the unit energy efficient. Refrigerant used in this system is free of CFC.

In long term experience, we have noted that different users have different needs; therefore, we understand the need of customization. In order to meet their diverse needs, we provide several customization options and accessories to make these bacterial incubators fit to their specific requirements. Optional accessories include PLC based HMI controller, 21 CFR part 11 software, data logger and thermal printer etc.

Each unit is tested at various steps before dispatching to customer ensuring you that you are buying a finest incubator.

SPECIFICATIONS:

Temperature range Ambient-20°C to 60°C,
Temperature accuracy ±0.2°C @37°C
Temperature controller Dual display PID controller
Display SV & PV
Auto tuning feature
Temperature sensor PT100
Inner chamber SS 304
External cabinet Powder coated GI sheet
Insulation Glass wool
Door Insulated door
Mechanical latch /
clamp Glass window
Heaters Resistance wire heaters
Shelves SS wire mesh (removable)
Air circulation Motorized blower / Axial fan
Standard fittings Mains on/off
switch Load
Indicator
Fan on/off switch
Power supply 220 Volts 50Hz
Optional GMP construction (Inner & outer SS
304) PLC + HMI controller w/ USB
interface 21 CFR Part 11 software
Data logger w/ USB
interface Thermal printer
Inner chamber LED light

ORDERING INFORMATION

Model no. Size (Inches) Volume Shelves
IG-50IC 15 x15 x 15 50 Litres 2
IG-95IC 18 x 18 x 18 95 Litres 3
IG-125IC 18 x 18 x 24 127 Litres 3
IG- 177IC 16 x 24 x 24 177 Liters 3
IG-216IC 24 x 24 x 24 226 Litres 3
IG-270IC 24 x 24 x 30 270 Litres 3
IG-300IC 23 x 23 x 35 300 Liters (Approx) 3
IG-340IC 24 x 24 x 36 340 Litres 5
IG-500IC 24 X27 X48 500 Litres 7

*Customize options available.
