iGene Labserve

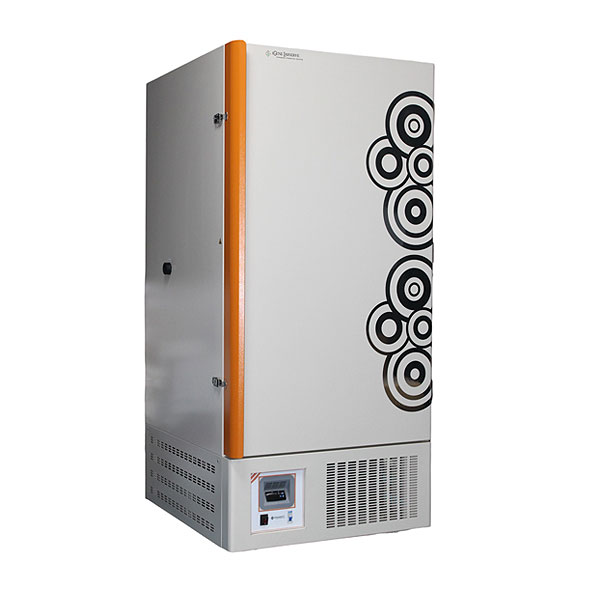

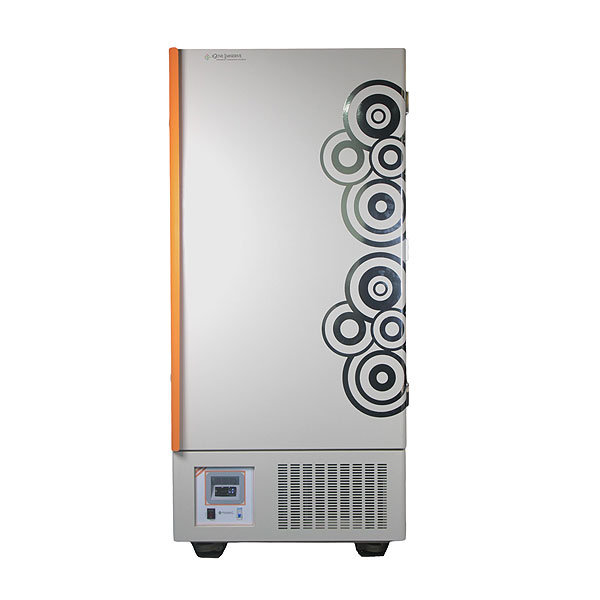

-80 Deep Freezer IG-DF Series

Category: Tag:

FEATURES & SPECIFICATIONS

DESCRIPTION:

The deep freezer refrigerator is used for scientific research, low temperature test of special materials and storage of Samples. It is specially used for scientific research, electronics, chemical industry, military, livestock system, academic lad, bioengineering, trans-ocean fishing corporation, etc.

FEATURES:

Precise temp. control system:
Microprocessor control panel, LED/LCD screen with -40 ºC -80 ºC adjustable, Platinum resistance temp. Sensor Read ability: I OC, easily to operation.
High density door insulation /vacuum insulation panel, Inner chamber is made up of Stainless steel and outer chamber is made up of Heavy gauge steel with powder coating.

Safety:
Safety door lock and controller setting password to prevent unauthorized access. Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar Power failure protection: Turn on delay of the cooling system after power failure.
Optional – condenser fault alarm, door open alarm, closed filter alarm.
Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensors failed. Vacuum relief port for easy opening of door.

Refrigeration system:
Germany SECOP compressor
Germany EBM cooling fan
Germany DANFOSS dry filter
Germany DANFOSS condensing system

Humanized Design:
Adjustable shelves
Document box
Booster handles Lockable
Heavy duty lockable casters

Optional:
Build-in back-up battery to display temperature and power alarm system for up to 8 hours without AC power auto on, off LED light with manual switch on control panel USB recorder, UPS light, SMS Remote alarms.

SPECIFICATIONS:

Model no. IG-80DF
Volume 418L
Temperature -40 TO -80℃
Temperature Accuracy ±1℃
Temperature stability at -80℃ ±2℃
Relative humidity 80%RH
Insulation thickness 150mm
Cooling type Direct cooling
Electric Protection I/B
Refrigerant Mixed, CFC-FREE, HCFC -FREE nonflammable refrigerants and cascade free coding
Noise Level Less than 56 Db
Interior dimension 552x635x1142mm
Consumption Least power consumption, 9.8kW. h/24h
Power 1000W
Power supply 230V/50Hz
Climate class N
Alarm type Sound/ light
Shelves individual 4 stainless steel compartments with individual inner doors to avoid cold air loss
Vent port and filter Heated air vent and front panel air filter
Exterior dimension 855x965x1865mm
Package dimension 960x1030x2030mm
Net weight 205kg
Gross weight 255kg
Optional function Printer & recorder
